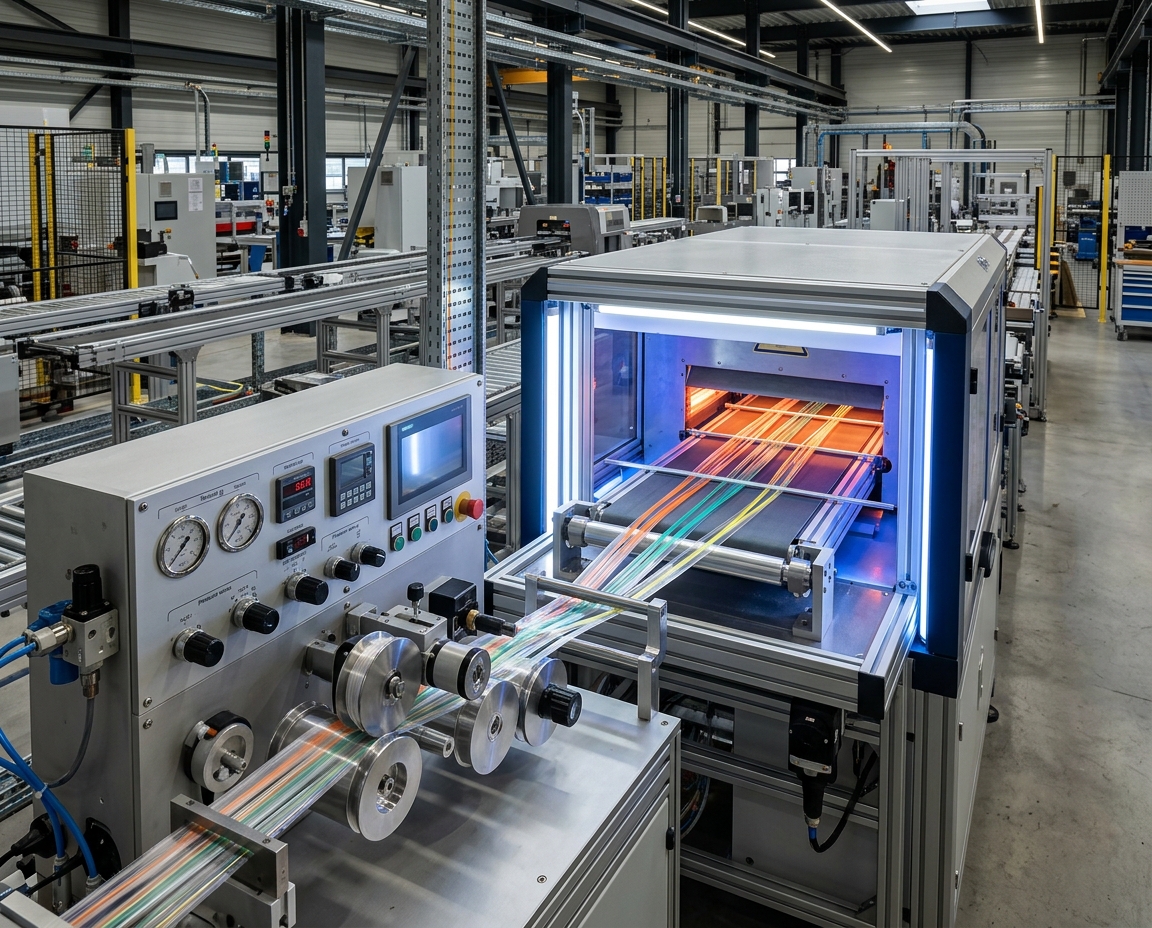

Intermittent Bonded Ribbon Production Line

Examine The Intermittent Bonded Ribbon Production Line

To create rollable IBR formats, three mold groups position fibers for the application of small adhesive dots. Operators can adjust the mold position from 0 to 15 mm to maintain consistent spacing and shape.

Produce Rollable Fiber Ribbons With Precision Bonding

The machine is fed by a 16-spool pay-off, and guide rollers with U-shaped grooves help maintain the organization of each strand. Steady contact during processing is encouraged by the rollers’ hard-anodized surfaces. For 12F and 16F layouts, the adjustable valve setup uses 5+5+1 valves for 12 fibers or 5+5+5 for 16. Ask the supplier to confirm tension control settings that suit your particular cable design.

Run 12- And 16-Fiber Configurations At Up To 600 m/min

Construction speed is specified at up to 600 m/min. Pay-off reel options hold 25.2 km or 50.4 km of fiber according to the listed reel dimensions: Φ236 mm × Φ25.4 mm × 108 mm and Φ267 mm × Φ25.4 mm × 180 mm. The system also offers T-type or fiber-optic take-up reels. Assess whether reel capacity matches your operating needs and anticipated changeover time.

Review The Production Line’s Key Equipment And Controls

Tension, resin placement, and UV exposure must work together to deliver reliable output. Operators can use the system to match settings with the needs of their cable design and fiber ribbon.

Coordinate Fiber Tension, Resin Dispensing, And UV-LED Curing

Every pay-off unit uses electro-pneumatic adjustment. Dispensers can operate independently or in linked groups, with adhesive-dot spacing and counts configured through the interface.

Before UV-LED post-curing, three pre-curing ovens work with the mold groups. Verify resin compatibility and operating conditions with the supplier.

Lamp current, oven temperature, alarms, and preset lengths are displayed or managed through the Siemens PLC and touchscreen. Check the required cabinet and power supply arrangements before purchasing.

Prepare Line Configuration, Installation, And Operating Conditions

Prepare a designated area before the equipment arrives. An enclosed, clean, dry, draft-free space is needed for the optical fibre system. Keep the temperature from 15°C to 25°C, with humidity no higher than 85%. These conditions help protect fiber equipment and maintain precision during operation.

With your facilities team, check site utilities, available electrical capacity, cabinet space, and cable design. The system needs nitrogen supplied at 7 bar and 99.99% purity, together with compressed air at 6 bar. The electrical supply must be three-phase, five-wire, and 380 V ±10%.

• Reserve room for the cabinet, components, resin, and access to service parts. Verify temperature settings and tension control before startup.
• Account for the specified reel size of Φ410 mm × Φ50.8 mm × 391 mm. The take-up unit supports reels weighing up to 30 kg.
• Account for the main power feed-in cable when planning the site. Connection cables and cable trays are not supplied with the equipment.

Before ordering, confirm the supply scope, reel types, and installation requirements. Reviewing these items may reduce setup time and avoid subsequent delays. Ask the supplier to verify settings for your fiber and cable design, including lamp accuracy and operating conditions. A clear plan helps the production system begin operating more smoothly.

Request Pricing For A Ribbon Production Solution Tailored To Your Needs

At its stated speed of 600 m/min, this line can be assessed by manufacturers producing rollable 12- or 16-fiber formats. When requesting a quote, provide your fiber layout, output goals, cable requirements, reel preference, and factory conditions.

Confirm that the proposed system includes the 16-spool pay-off, UV-LED curing arrangement, take-up capacity, and relevant options. Examine the supplied components, dispensing-head options, unit functions, and cable design prior to ordering.

The documentation list includes operating and maintenance manuals, a general layout drawing, electrical schematics, and a wear-parts list. Reviewing these documents can clarify setup time and future service requirements.

For pricing and configuration details matched to your production plan and site utilities, contact Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. Before buying, check the scope of supply and replacement parts.
