Complete Guide To Flaring 3/8 Copper Tubing

Surprisingly, over 40% of leaks in HVAC work can be traced back to bad flare joints instead of faulty fittings. These are issues that proper technique can completely avoid. This guide is designed to show you how to correctly flare 3/8 copper tubing so your connections stay reliable and easy to service.

In plumbing and HVAC work, 3/8″ OD copper is common, and this guide compares flare joints with soldering and brazing methods. You’ll also see why 3/8 copper tubing flare fittings plus 3/8 flare to 3/8 compression adapters often make the most practical choice. Whether you’re a DIYer, plumber, or HVAC technician in the U.S., this article offers practical, code-compliant guidance on forming copper tubing flare joints.

In this brief yet detailed guide, you’ll follow the flaring process step by step, with notes on the right tools, materials, and standards such as SAE J533 and NFPA 54/ANSI Z223.1. You’ll see a clear procedure, troubleshooting pointers, and buying sources such as Installation Parts Supply for wholesale fittings and tools.

• How To Flare 3/8 Copper Tubing is essential for removable, flame-free connections in many HVAC and plumbing jobs.
• Rely on correct 3/8 copper tubing flare fittings and code-approved brass parts to stay compliant and reduce corrosion risk.
• A step by step copper tubing flaring guide reduces leaks: cutting square, deburring, and forming a 45° flare are critical.
• Be sure you know when flare joints are better than solder or braze joints, particularly for serviceable runs or gas piping.
• Refer to SAE J533 and check the AHJ per NFPA 54/ANSI Z223.1 before final installation.

Importance of Flaring 3/8 Copper Tubing for Plumbing & HVAC

When soldering isn’t practical, flaring 3/8 copper tubing provides a dependable sealing method. It enables working without an open flame, enhancing safety. Using flares can also speed up repairs and equipment replacement.

Situations Where Flare Joints Are Better Than Soldering Or Brazing

Choose flare joints in situations where a flame is dangerous, including finished interiors or around combustible materials. Flare connections provide a dependable, yet removable, link for appliances and service piping. This makes flares a robust alternative to soldered or brazed joints on thin tubing.

Applications: Water Service, Fuel Gas, Refrigeration & HVAC

Flared connections are commonly used in water service, including meter and main tie-ins, and refrigeration service lines. They’re also found in appliance feeds like ice makers. Single 45° flares satisfy many fuel gas codes for propane and natural gas, making it easier to connect small-diameter tubing. Flares are frequently paired with adapters—like a 3/8 flare to 3/8 compression adapter—to transition between fitting types.

NFPA 54/ANSI Z223.1, Code Checks, and Safety

Under the National Fuel Gas Code NFPA 54/ANSI Z223.1, 45° flared brass fittings are permitted for gas services. Even so, always check with your local authority for any additional rules before starting. By using approved brass fittings to limit corrosion and following copper flare joint rules, you help ensure your installations are legal and safe.

Benefits of Flare Connections: No Flame, Removable Joints, Easy Service

Flaring techniques eliminate the need for torch use in risky or confined spaces, providing safer working conditions. These joints form consistent, detachable connections that simplify access for repair and maintenance. This is especially helpful on retrofit and service jobs, where 3/8 copper flares improve repair efficiency and cut downtime.

Process Overview: How To Flare 3/8 Copper Tubing

Begin flaring 3/8 copper tubing by selecting the appropriate tube. You must also understand the standards governing the joint. Select more malleable tubing whenever you can. Always stay within the 45° flare requirement so the connection stays tight and leak-free with approved brass fittings.

Type K and soft-temper, annealed copper are optimal for flaring. These materials bend and shape readily without splitting. Type L may also be flared, provided you anneal the end before forming. However, hard-temper or Type M tubing is typically used for soldering or brazing unless you first anneal the section to be flared.

Required Flare Angle and Standards

For 3/8″ tubing, a 45° single flare is necessary, complying with SAE J533 specifications. Use a flaring tool that’s built for 3/8 OD copper. It should form a precise 45° cone on the tube end. Precise angle control ensures successful copper tubing flares.

When to anneal the tube end and why

Anneal the ends of hard-temper or rigid copper to avoid cracks and splits during forming. Heat the end until it turns a dull red. Then let it cool properly and remove any scale afterwards. This annealing step enhances ductility and results in a smoother flare.

Checking Local Acceptance and Using Approved Fittings

Always confirm local acceptance of flare joints with the authority having jurisdiction for your situation. This is crucial for applications like fuel gas, water service, or refrigeration. Stick with approved brass 3/8 copper flare fittings only. Doing so helps prevent dissimilar metal corrosion and extends fitting life.

Tools & Materials Needed To Flare 3/8 Copper Tubing

To make reliable flares, you must have the correct tools and clean tubing. Below is what you’ll need to produce reliable 45° flares on 3/8″ copper tubing for plumbing and HVAC work.

Core Tools

Start with a tubing cutter sized for 3/8″ OD copper so you can get square, burr-free cuts. Also, a reamer or debur tool is vital for removing burrs and reaming to the full inside diameter. When forming the flare, select a flaring tool specifically designed for a 45° single flare. You can use a yoke-and-cone flaring tool or a flaring block and cone set sized for 3/8″ tubing.

Optional Tools For Better Results

For a smoother, more consistent flare lip, consider an ironer or burnisher. You can also use a spring or lever bender to run 3/8″ tubing without kinking it in confined areas. If working with hard-temper tube, use an annealing torch to soften the end before flaring, which helps avoid cracking.

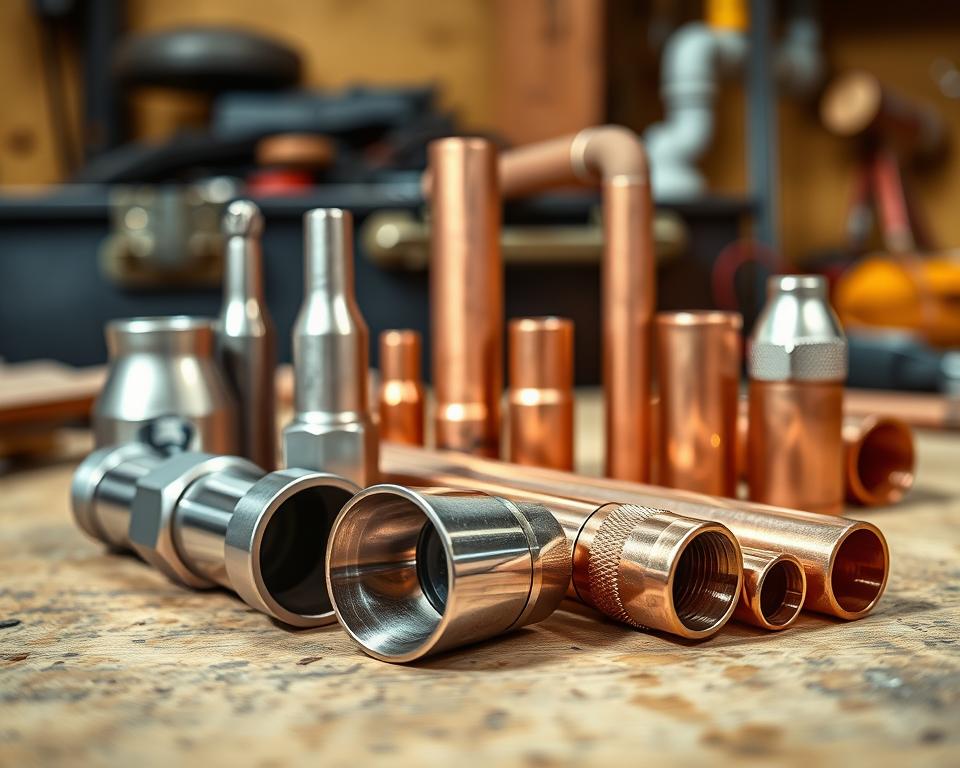

Required Fittings and Adapters

Keep brass 3/8 copper tubing flare fittings and flare nuts available for your flare connections. It’s wise to keep 3/8 flare to 3/8 compression adapters ready for when transitioning between flare and compression systems is necessary. Opt for a high-quality adapter that aligns with thread types and seating surfaces to prevent leaks and avoid galvanic corrosion.

Where To Buy Supplies

For wholesale fittings, flare nuts, adapters, and flaring tools, consider Installation Parts Supply. They supply both professional contractors and DIY customers. Local plumbing supply houses can provide larger tools and in-person advice if you prefer to shop locally.

Safety and Workspace

Always wear gloves and safety glasses. Maintaining a clean, well-lit workspace helps prevent debris from contaminating the tubing. This lowers the chance you’ll need to redo work and supports correct fitment of 3/8 copper tubing flare fittings and adapters.

• Tubing cutter (3/8″ capacity)
• Deburring/reaming tool
• 45° flaring tool (yoke style or block/cone)
• Optional ironer/burnisher tool
• Spring bender (optional)
• Optional torch for annealing ends
• 3/8 copper tubing flare fittings and flare nuts
• 3/8 flare to 3/8 compression or other flare-to-compression adapter
• Protective gloves and safety eyewear

Step-by-Step Copper Tubing Flaring Guide and Best Practices

Work in a tidy, organized space and gather your tools before you start. Employ a dedicated tubing cutter to get a square cut on the 3/8″ OD tube. Turn the cutter around the tubing, tightening in small steps as you go. Stay away from using hacksaws. They can cause rough edges and distort the tubing.

Cutting the tube squarely

Hold the tube securely and start with a light scoring cut. Continue until the cutter goes through completely. Cease cutting once the perimeter is even. A square end keeps the flare concentric, helping it seal reliably with 3/8 copper flare fittings.

Deburring and Reaming

After cutting, remove burrs inside and out with a reaming tool. Make sure you fully ream the interior to clear all burrs. Next, clean the tube’s outside with emery cloth or a nylon abrasive pad. This step is vital for clearing debris and metal shavings.

Sliding The Flare Nut Onto The Tube

Don’t forget to slide the flare nut onto the tube before flaring. Orient the nut with its threads facing the flaring end. Forgetting this step is a common beginner mistake. Double-check that the nut fits the 3/8 copper compression or flare fittings in your system.

Clamping The Tube In The Flaring Bar

Place the tube end into the correct 3/8″ OD slot in the flaring bar. Adjust the tube’s height per the tool guidelines so you get the correct flare length. Secure the clamp tightly to prevent the tube from moving during the flaring process.

Forming the 45° flare

Set the yoke and 45° flaring cone directly above the tube end. Gradually lower the cone by turning the handle clockwise, forming the flare. Continue until you achieve a full, even 45° flare. Avoid excessive force so you don’t distort the tube or misshape the flare.

Optional ironing or burnishing

To refine the flare’s lip, consider using an ironer or burnisher. This light compression helps make the seal more consistent and lets the flare nut engage smoothly. It also keeps the nut from cutting into the flare face.

Inspecting the Finished Flare

Inspect the finished flare for smoothness, evenness, and uniform thickness. Ensure that it doesn’t encroach on the fitting threads. Check for any cracks, splits, or rough edges. If any flaws are found, re-cut and flare a new section of the tube.

Assembly and tightening

Before putting the joint together, clean all mating surfaces thoroughly. Skip any pipe joint compound on the flare surfaces. Hand-tighten the flare nut first, then finish to the correct torque with wrenches. Avoid over-tightening because it can crush or damage the flare. Utilize the correct 3/8 flare to 3/8 compression adapters for transitions if necessary.

Remember these copper tubing flaring tips for diy projects: Practice on scrap pieces, carefully choose fitting matches, and always inspect threads and seating before applying pressure. By following this guide, you’ll be able to create secure, leak-free connections with standard 3/8 copper compression and flare fittings.

Troubleshooting Common Flaring Issues and Solutions

During forming, small errors can lead to noticeable issues later. This section helps you recognize and fix common issues like uneven flares, splits, and leaks. It provides step-by-step solutions to ensure repairs are effective and reliable.

Uneven flare or misalignment

Uneven flares commonly result from tube slippage, incorrect clamp height, or movement while forming. First, trim the damaged end. Next, re-ream the tube to remove burrs, position it to the proper height, and flare again. If misalignment keeps happening, practice on scrap pieces. Make sure your flaring tool properly grips and seats the 3/8″ OD tube every time.

Cracked or split flare

Hard-temper copper easily cracks under pressure. Soften the end by gently heating it before attempting to flare. Avoid using too much force on the cone and do not over-tighten the nut. If flaws remain, anneal again before making adjustments.

Leakage at the Flare Joint

Inspect both the fitting and the flare’s 45° surface for any damage. Swap out any faulty parts instead of attempting to patch or hide them. Make sure the flare seats correctly, that tightness is correct, and that threads don’t extend into the sealing area. Avoid using any joint compound on flare faces, as it disturbs the seal and can actually cause leaks.

Out-of-round tubing

An out-of-round or oval tube will not flare evenly. Employ a mandrel or resizing tool to correct shape. If the tube is badly kinked, cut it back and reshape with proper tools before you flare.

Tool wear and improper selection

Worn-out tools or incorrectly sized flaring blocks are common causes of poor flares. Choose tools made for 3/8″ OD tubing and a precise 45° cone in line with SAE J533. Maintain your tools carefully and look for designs that support better sealing performance.

To enhance your technique, watch a tutorial on correct flaring methods. As you practice regularly and use proper tools, troubleshooting these problems will feel much easier.

Practical Tips, Techniques & DIY Advice For Reliable Flares

Always begin with a solid plan. Before working on a live system, gather your tools, fittings, and a few pieces of scrap 3/8″ copper. This preparatory step lets you practice on spare tubing. It’s a great way to build muscle memory and avoid costly errors when working with water, gas, or refrigeration systems.

Hone your skills with scrap tubing and by watching instructional videos. Such resources are invaluable when you’re working to refine your technique.

Organize a modest workspace for yourself. Then, repeatedly make flares until each one is perfect in appearance. Watching good video tutorials will help you understand proper hand placement, clamp height, and the best way to move the yoke. This is especially helpful for beginners who are just learning to flare copper.

Choose Type K or annealed tubing for the best results.

Type K tubing, with its thicker wall, bends without cracking and helps yield a clean flare. Should you choose Type L or hard-temper tubing, be sure to anneal the end first. This softens the metal, which helps to avoid splits during the flaring process, improving the metal’s flow.

Avoid common mistakes that cause leaks and extra rework.

Keep in mind you must add the flare nut before forming the flare. Use a tubing cutter instead of a hacksaw, and always ream the inner diameter to clear burrs. Avoid over-tightening the cone or flare nut to prevent cracking the flare. Never put pipe compounds on the flare face.

It’s crucial to know when a single flare or a double flare is appropriate.

In most code-compliant plumbing, HVAC, and fuel gas situations, a single 45° flare meeting SAE J533 is standard and reliable. However, automotive brake lines often need double flares to handle high pressure safely. Always confirm which flare type the system requires before you start.

Selecting the correct fittings is critical for corrosion prevention and system compatibility.

Select approved brass flare fittings specifically for 3/8 copper tubing and ensure there is no direct contact with different metals that could lead to galvanic corrosion. For flare-to-compression transitions, choose a certified 3/8 flare to 3/8 compression adapter rated for your application.

Put your money into quality tools and fittings.

For flare nuts, fittings, and tools, reputable suppliers such as Installation Parts Supply are a good choice. They stock contractor-grade parts with wholesale pricing. By investing in quality, you reduce rework and improve seal reliability.

Tip	Why it matters	Quick action
Practice on scrap pieces	Builds consistency and reduces errors	Make 5–10 practice flares before the job
Use Type K tubing or anneal	Helps prevent cracking and makes forming easier	Anneal hard-temper ends with a small torch
Slide on flare nut first	Avoids redoing work and losing flare nuts	Check that the nut is installed before clamping
Select proper flare style	Ensures pressure and code requirements are met	Confirm whether single or double flare is required
Select compatible fittings	Reduces galvanic corrosion risk	Use brass 3/8 copper flare fittings or a properly rated 3/8 flare to 3/8 compression adapter
Buy quality tools	Improves flare finish and tool longevity	Buy from Installation Parts Supply or a similar supplier

Wrapping Up

Mastering how to flare 3/8 copper tubing is about technique and the right materials. Use Type K or annealed copper, and be sure every cut is square. Fully ream the tubing each time. Crucially, slide the flare nut on before forming the 45° flare, in line with SAE J533.

Picking an appropriate 3/8″ OD flaring tool is essential. Inspect each flare for a smooth, even seat. The flare should not protrude into the thread area. Paying attention to these details raises the overall quality of your installations.

Adherence to proper copper tubing flaring techniques is key. This means secure clamping and, optionally, ironing to improve uniformity. Avoid over-tightening so you protect the flare and joint integrity.

Complying with safety and code requirements is critical. Always verify local AHJ rules and standards like NFPA 54/ANSI Z223.1 for gas and water service jobs. Choosing approved brass fittings is also essential for reducing corrosion and ensuring system compatibility.

Practicing on scrap tubing is one of the best ways to improve your skill. Consider watching quality video tutorials for extra guidance. It’s also important to source high-quality tools and fittings from reputable suppliers. Installation Parts Supply offers wholesale parts for your needs.

Through applying these detailed techniques and troubleshooting tips, you’ll be able to produce reliable flare connections. On code-sensitive or high-pressure systems, you should consult a licensed plumber or HVAC professional.
